MAIN CHARACTERISTICS :

	Standard working wides: 150, 200 & 300 mm.
	Machine in versions from 1 until 8 heads.
	Grinding heads with adjustable system of pneumatic floating.
	Belt strut of mechanical type and optionally pneumatic with automatic  detection system of sandpaper belt breaking.
	Possibility of coupling on the heads, oscillation belt struts.
	Automatic return transport.
	Possibility of working in dry or with cooling.
	The protection hoods can be optionally adapted for polishing processes  with discs of 350 mm. as a maximum diameter.
	Lateral guiding system of the pieces during the process, adjustable through command.
	Vertical tightening system between heads.
	Automatic return roller tables for profiles until 6 m.
	[ Catalogue 1 - format *.pdf - 137 KB ]
	[ Catalogue 2 - format *.pdf - 136 KB ]

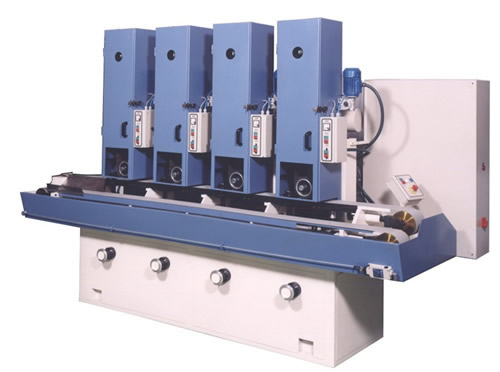

VIEWS OF THE MACHINE
