For
glossing processes for: sheets, bobbins, etc. |
|
|
|
Versions
from 1 glossing head. |
|
Working
wide until 2000 mm. |
|
|
Sheets
length = continuous process, sheet by sheet. |
|
Exclusive
fast oscillation equipment adjustable through
speed frequency converter of 300 pulses/min. |
|
Adjustable
working speed by frequency converter and controlled
through encoder & digital tachometer. |
| |

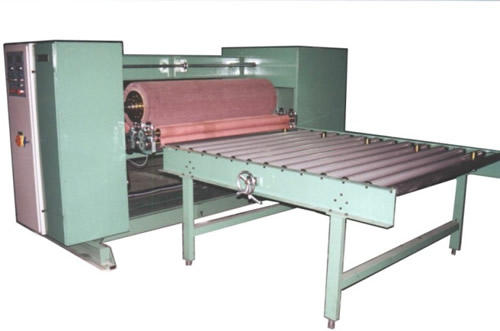

Machine
frame unit of big rigidity with two vertical columns
over the same support base and superior beam
of union between columns to close the unit. |
| |
Strong
working spindle with double support over special
bearings for the combined movement of both rotation
& oscillation. |
| |
Bushing-coupling
unit, brush-support independent from the spindles
transmission, making easy a rapid change and allowing
the assembly of the scotch type brushes of
diameter 400 with quick fixing system between
extreme spindles. |
| |
General
machine structure with protection hoods ready
to the connection to an aspiration equipment.
|
 |
Roller
benches of inlet & output. |
|
Semiautomatic
and automatic plastic-cover machines, optional. |
|
Automatic
rectifier system of the glossing roller to get
an homogeneous wear and a superficial finish without
marks. |
 |
[ Catalogue - format *.pdf - 166 KB ] |
|
