GRINDING & POLISHING MACHINES FOR ROUND TUBES.

CENTERLESS SYSTEM.

MAIN CHARACTERISTICS :

	For processes of :grinding, glossy or polishing.
	Tubes diameter from 8 until 200 mm.
	Machine versions from 2 until 8 heads.
	Adjustment system of the support guide depending on the  tube diameter through an only flywheel (exclusive system).
	Floating system in the heads to their adaptation to the tubes   irregularities.
	Electrical or mechanical-manual movements for the  heads  positioning.
	Two speeds motors for processes of: grinding-glossy and   polishing.
	General protection cabine, optional.
	Automatic charge and discharge systems, optional.
	Heads assembled over bench or over independent units.
	Modular system for possible future enlargements.
	[ Catalogue - format *.pdf - 140 KB ]

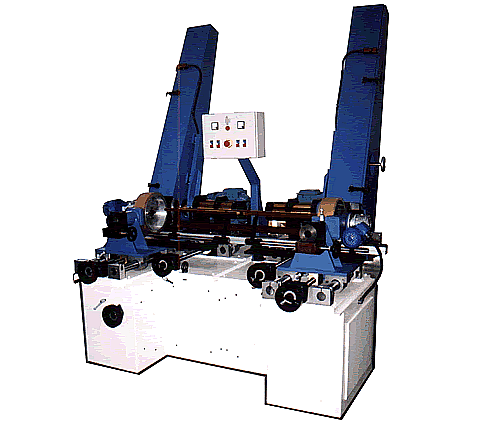

VIEWS OF THE MACHINE
